DevStack is an opinionated script to quickly create an OpenStack development environment. It can also be used to demonstrate starting/running OpenStack services and provide examples of using them from a command line. This post is going to present the steps how to install DevStack into a VMware workstation Ubuntu VM.
Youtube Video:

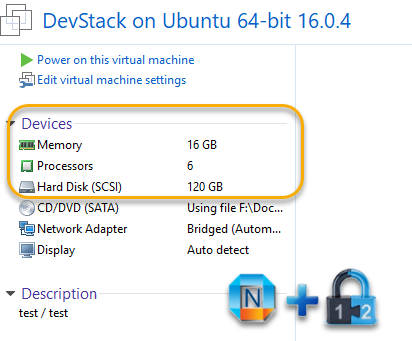

1. Prepare Ubuntu VM
This Ubuntu Virtual machine will need at least 12G memory and 100G hard drive. I have given my OpenStack VM 16G memory and 120G hard drive for testing.
2. Update System and change sources.list file
You may want to remove or comment cdrom entry from your default installed Ubuntu sources.list.
I found if I did not do this, my Ubuntu will get some error message to say:
The repository 'cdrom://Ubuntu 16.04 LTS _Xenial Xerus_ - Release amd64 (20160420.1) xenial Release' does not have a Release file.
Data from such a repository can't be authenticated and is therefore potentially dangerous to use.
See apt-secure(8) manpage for repository creation and user configuration details.
The repository 'ppa.launchpad.net/kirillshkrogalev/ffmpeg-next/ubuntu xenial Release' does not have a Release file.
Data from such a repository can't be authenticated and is therefore potentially dangerous to use.
See apt-secure(8) manpage for repository creation and user configuration details.
Failed to fetch cdrom://Ubuntu 16.04 LTS _Xenial Xerus_ - Release amd64 (20160420.1)/dists/xenial/main/binary-amd64/Packages Please use apt-cdrom to make this CD-ROM recognized by APT. apt-get update cannot be used to add new CD-ROMs
Some index files failed to download. They have been ignored, or old ones used instead.

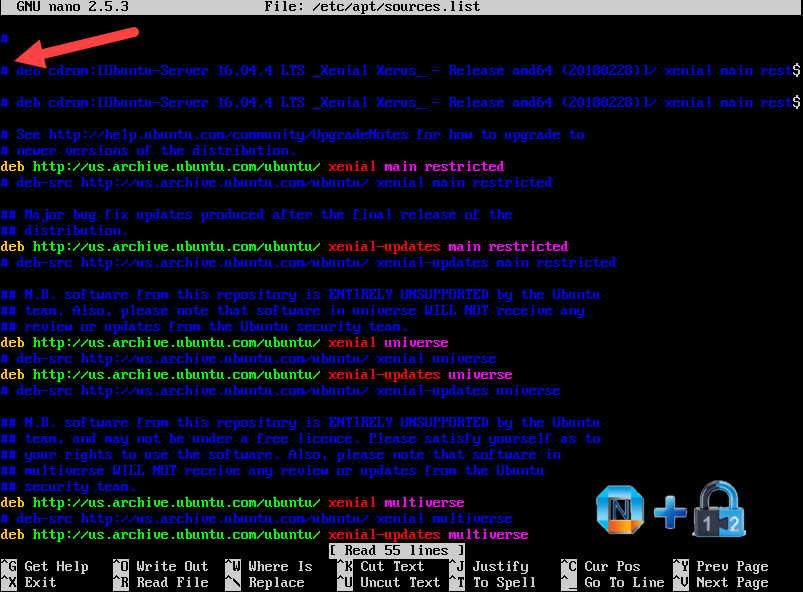

To resolve this problem from terminal you must remove/comment this CD-ROM repository source directly from
/etc/apt/sources.list sudo nano /etc/apt/sources.list
and comment or remove lines that include cdrom. eg:
deb cdrom:[Ubuntu-Server 16.04 LTS _Xenial Xerus_ - Release amd64 (20160420.3)]/ xenial main restricted
Now it is time to update / upgrade Ubuntu system:sudo apt-get update sudo apt-get upgrade
3. Install git and clone Devstack to local
sudo apt-get install git
cd / sudo git clone https://git.openstack.org/openstack-dev/devstack master
4. Prepare to install Devstack
4.1 copy a sample configuration file to use for installation
cd /master sudo cp samples/local.conf local.conf
sudo nano local.conf
Search for the password variable section and ensure it reflects the following (YOURPASSWORD is the actual password you want to use):
ADMIN_PASSWORD=YOURPASSWORD MYSQL_PASSWORD=$ADMIN_PASSWORD RABBIT_PASSWORD=$ADMIN_PASSWORD SERVICE_PASSWORD=$ADMIN_PASSWORD
4.2 Create a new user ‘stack’ and change master folder permission to this new user
We can use a pre-installed script to create a new user for devstack. The command to run this script is:
sudo /devstack/tools/create-stack-user.sh
Once the script completes, you’ll need to change the permissions of the master folder with the command:
sudo chown -R stack:stack /master
5. Start DevStack installation
This must be run as the stack user. lets change current user to our new created user – stack.
sudo su stack
Final command to start installation:
./stack.sh
Then it is a long time to wait, more than 45 minutes for me. At the end, once you see following output, your DevStack installation is successful.
=========================
DevStack Component Timing
(times are in seconds)
=========================
run_process 34
test_with_retry 4
apt-get-update 7
pip_install 635
abc 216
wait_for_service 30
git_timed 1248
dbsync 48
apt-get 408
-------------------------
Unaccounted time 591
=========================
Total runtime 3221
This is your host IP address: 10.94.200.78
This is your host IPv6 address: ::1
Horizon is now available at http://10.94.200.78/dashboard
Keystone is serving at http://10.94.200.78/identity/
The default users are: admin and demo
The password: password1234
WARNING:
Using lib/neutron-legacy is deprecated, and it will be removed in the future
Services are running under systemd unit files.
For more information see:
https://docs.openstack.org/devstack/latest/systemd.html
DevStack Version: stein
Change: 62c832b090021b0c85ade8eb718eabaccc345257 Merge "Update default cirros version" 2019-01-20 15:20:35 +0000
OS Version: Ubuntu 16.04 xenial

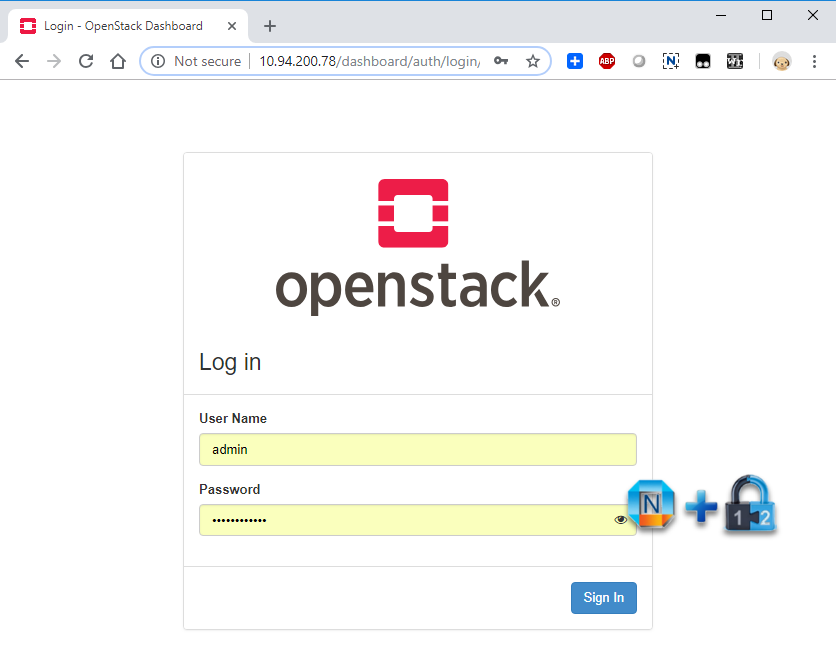

6. Launch Browser to log in DevStack
7. Uninstall DevStack.
If there is any change on local.conf file, you will have to uninstall and clean DevStack installation first.
stack@ubuntu:/master$ ./unstack.sh
stack@ubuntu:/master$ ./clean.sh
Some Command line tools:
test@ubuntu:~$ cd /master test@ubuntu:/master$ source openrc admin admin WARNING: setting legacy OS_TENANT_NAME to support cli tools. test@ubuntu:/master$ nova show tt1 +--------------------------------------+-----------------------------------------------------------------+ | Property | Value | +--------------------------------------+-----------------------------------------------------------------+ | OS-DCF:diskConfig | AUTO | | OS-EXT-AZ:availability_zone | nova | | OS-EXT-SRV-ATTR:host | ubuntu | | OS-EXT-SRV-ATTR:hostname | tt1 | | OS-EXT-SRV-ATTR:hypervisor_hostname | ubuntu | | OS-EXT-SRV-ATTR:instance_name | instance-00000004 | | OS-EXT-SRV-ATTR:kernel_id | | | OS-EXT-SRV-ATTR:launch_index | 0 | | OS-EXT-SRV-ATTR:ramdisk_id | | | OS-EXT-SRV-ATTR:reservation_id | r-gmom984x | | OS-EXT-SRV-ATTR:root_device_name | /dev/vda | | OS-EXT-SRV-ATTR:user_data | - | | OS-EXT-STS:power_state | 4 | | OS-EXT-STS:task_state | - | | OS-EXT-STS:vm_state | stopped | | OS-SRV-USG:launched_at | 2019-01-22T01:10:52.000000 | | OS-SRV-USG:terminated_at | - | | accessIPv4 | | | accessIPv6 | | | config_drive | | | created | 2019-01-22T01:10:40Z | | description | tt1 | | flavor:disk | 0 | | flavor:ephemeral | 0 | | flavor:extra_specs | {} | | flavor:original_name | cirros256 | | flavor:ram | 256 | | flavor:swap | 0 | | flavor:vcpus | 1 | | hostId | d04e0dcc9fc1398a8e5e01ed3376e8fb30f59e85459ca7bd75bb983e | | host_status | UP | | id | 58ddbe80-d943-4d5b-9b2a-e5f6518e5ea1 | | image | cirros-0.4.0-x86_64-disk (b897ce20-2ad3-4142-9e02-63ec31986bcd) | | key_name | - | | locked | False | | metadata | {} | | name | tt1 | | os-extended-volumes:volumes_attached | [] | | public network | 172.24.4.31, 2001:db8::1f7 | | security_groups | default | | status | SHUTOFF | | tags | [] | | tenant_id | ad9bc16cfe6f4d57a3f1a722e413f9d5 | | trusted_image_certificates | - | | updated | 2019-01-22T01:21:45Z | | user_id | 659da36320994abdaac01a509911cd81 | +--------------------------------------+-----------------------------------------------------------------+ test@ubuntu:/master$
test@ubuntu:/master$ nova service-list
+--------------------------------------+------------------+--------+----------+---------+-------+----------------------------+-----------------+-------------+
| Id | Binary | Host | Zone | Status | State | Updated_at | Disabled Reason | Forced down |
+--------------------------------------+------------------+--------+----------+---------+-------+----------------------------+-----------------+-------------+
| f26f6b58-ee11-4371-92ab-7bcdb4a0460d | nova-scheduler | ubuntu | internal | enabled | up | 2019-01-22T01:38:09.000000 | - | False |
| ef6130dd-14e0-4c7f-a6ed-52ab18dbf290 | nova-consoleauth | ubuntu | internal | enabled | up | 2019-01-22T01:38:07.000000 | - | False |
| 2f7f1d9b-de00-476a-b396-0beb2f013c33 | nova-conductor | ubuntu | internal | enabled | up | 2019-01-22T01:38:10.000000 | - | False |
| 1c479ce7-ad67-4d51-bb9f-a2caa7ff473b | nova-compute | ubuntu | nova | enabled | up | 2019-01-22T01:38:15.000000 | - | False |
| 99d78d26-aedb-455b-bf71-ca8b868464e5 | nova-conductor | ubuntu | internal | enabled | up | 2019-01-22T01:38:09.000000 | - | False |
| c8ecc3a9-0b60-41fb-b6d7-36e7210cadb3 | nova-compute | ubuntu | nova | enabled | up | 2019-01-22T01:38:12.000000 | - | False |
+--------------------------------------+------------------+--------+----------+---------+-------+----------------------------+-----------------+-------------+
test@ubuntu:/master$ nova hypervisor-stats
+----------------------+-------+
| Property | Value |
+----------------------+-------+
| count | 1 |
| current_workload | 0 |
| disk_available_least | 10 |
| free_disk_gb | 18 |
| free_ram_mb | 15261 |
| local_gb | 18 |
| local_gb_used | 0 |
| memory_mb | 16029 |
| memory_mb_used | 768 |
| running_vms | 1 |
| vcpus | 6 |
| vcpus_used | 1 |
+----------------------+-------+
test@ubuntu:/master$
test@ubuntu:/master$ openstack volume show testv
+--------------------------------+--------------------------------------+
| Field | Value |
+--------------------------------+--------------------------------------+
| attachments | [] |
| availability_zone | nova |
| bootable | false |
| consistencygroup_id | None |
| created_at | 2019-01-22T01:43:46.000000 |
| description | |
| encrypted | False |
| id | 267cffee-8da0-42d1-8eb0-a45e4192dc3a |
| migration_status | None |
| multiattach | False |
| name | testv |
| os-vol-host-attr:host | None |
| os-vol-mig-status-attr:migstat | None |
| os-vol-mig-status-attr:name_id | None |
| os-vol-tenant-attr:tenant_id | ad9bc16cfe6f4d57a3f1a722e413f9d5 |
| properties | |
| replication_status | None |
| size | 2 |
| snapshot_id | None |
| source_volid | None |
| status | error |
| type | Performance |
| updated_at | 2019-01-22T01:43:46.000000 |
| user_id | 659da36320994abdaac01a509911cd81 |
+--------------------------------+--------------------------------------+
